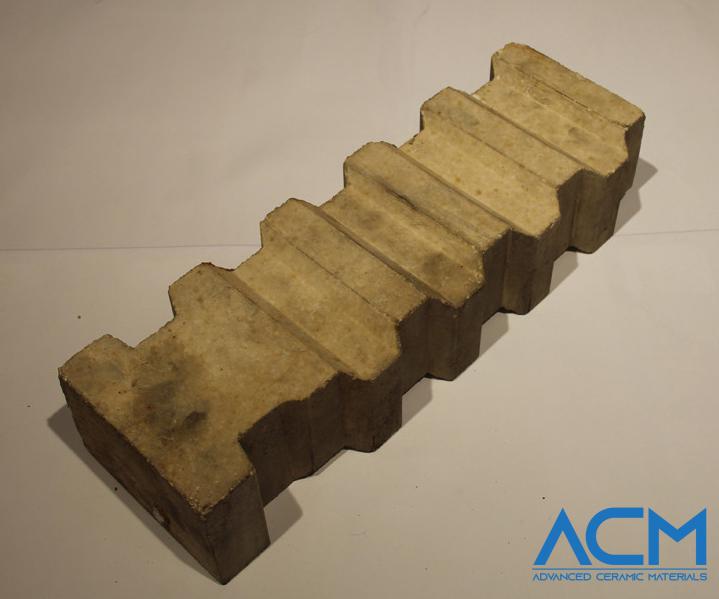

AC6130 High Alumina Anchor Brick

  • Catalog No. AC6130
  • Material Al2O3, Fe2O3
  • Bulk Density 2.3-2.9 g/cm3
  • Apparent Porosity 15-26%
  • Max Working Temp. 1450-1600℃

AC6130 High Alumina Anchor Brick

High Alumina Anchor Brick
High Alumina Anchor Brick

High Alumina Anchor Brick Overview

High Alumina Anchor Brick is a specialized refractory brick designed to anchor or secure refractory linings in high-temperature applications such as furnaces, kilns, and other heat-intensive equipment. These bricks are characterized by their high alumina content, typically ranging from 50% to 90%, which provides them with excellent resistance to high temperatures, mechanical wear, and chemical corrosion.

High Alumina Anchor Brick Specifications

Items

Corundum Andalusite

High alumina Andalusite

High Al2O3

Fireclay

JRL-90

JRL-80A

JRL-80

JRL-70

JRL-60

JRL-50

Al2O%  ≥

90

80

80

70

60

50

Fe2O3% ≤

0.5

1.0

1.5

1.5

1.8

1.8

Apparent Porosity % ≤

15-19

17-21

19-23

19-24

20-25

20-26

Bulk Density g/cm³ ≥

2.9

2.7

2.6

2.5

2.35

2.3

C.C.S Mpa ≥

60

60

60

55

50

40

RUL ℃

1600℃

0.8

1560℃

0.8

1540℃

0.8

1500℃

0.8

1460℃

0.8

1450℃

0.8

P.L.C %

1550℃×2h

0.1-0.2

0.1-0.2

0.1-0.2

-

-

-

1450℃×2h

-

-

-

0.1-0.2

-

0.1-0.4

1100℃ Thermal shock resistance

25

20

15

15

20

15



High Alumina Anchor Brick Packaging

High Alumina Anchor Bricks are packaged to ensure they arrive in optimal condition. Common packaging methods include:

  • Standard Packaging: Bricks are wrapped in moisture-resistant materials to protect them from environmental factors.
  • Palletized Packaging: Bricks are stacked on pallets and secured with strapping to prevent shifting during transportation. The pallets are often covered with a protective sheet.
  • Custom Packaging: Custom packaging options are available to meet specific requirements, including special handling or shipping needs.

Frequently Asked Questions (FAQs)

1. What are the primary applications of High Alumina Anchor Bricks?

  • These bricks are used primarily for anchoring or securing refractory linings in high-temperature environments, such as in furnaces, kilns, and other heat-intensive equipment.

2. How does High Alumina Anchor Brick compare to other refractory bricks?

  • High Alumina Anchor Bricks offer superior high-temperature resistance, mechanical strength, and chemical corrosion resistance compared to many other refractory materials, due to their high alumina content.

3. What is the typical service life of High Alumina Anchor Bricks?

  • The service life of these bricks depends on the specific application and conditions. Generally, they provide a long service life due to their durability and high-temperature resistance.

4. Can High Alumina Anchor Bricks withstand thermal cycling?

  • Yes, these bricks are designed to withstand thermal cycling, which involves rapid heating and cooling, due to their high thermal shock resistance.

5. How should High Alumina Anchor Bricks be stored?

  • Bricks should be stored in a dry, covered area to protect them from moisture and physical damage. They should be kept on a flat surface and handled with care to avoid any damage.
