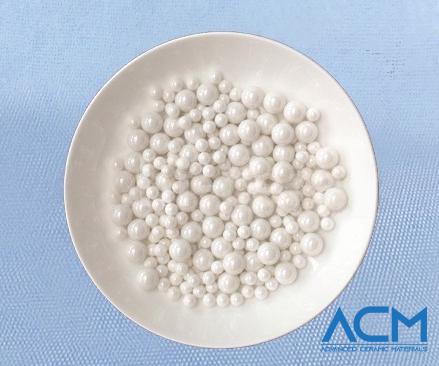

CM6734 Zirconium Oxide Bearing Balls, ZrO2

Catalog No. CM6734
Material ZrO2
Shape Bearing Ball
Purity ≥99%

Inquiry

CM6734 Zirconium Oxide Bearing Balls, ZrO2

Product Description

Zirconium Oxide Bearing Balls deliver remarkable toughness, high flexural strength, and superior wear resistance, positioning them as a cost-effective substitute for silicon nitride ceramics in the bearing industry. These balls exhibit excellent corrosion resistance, making them suitable for both acidic and alkaline environments. They can withstand temperatures up to 500°C and provide electrical insulation with non-magnetic properties. With a density of approximately 6.05 g/cm³—about 20% lighter than steel—they help reduce noise and wear. Their self-lubricating characteristic enables operation without the need for additional lubricants. Common applications include ceramic bearings, high-temperature and vacuum bearings, chemical pumps, and ceramic valve balls.

Zirconium Oxide Bearing Balls Specifications

Property	Details
Material	Zirconium Oxide (ZrO₂)
Shape	Bearing Ball
Purity	≥99%, 99.7%, 99.99%, or customized
Precision Grade	G5 - G100
Dimensions	1.588 to 47.625 mm (1/16" to 1 7/8") or customized
Density	Approximately 6 g/cm³
Max. Operating Temp	Up to 500°C

Note: Specifications are based on theoretical data. For specific requirements or detailed inquiries, please contact us.

Applications

Ceramic Bearings: Enhance durability and reduce maintenance in high-performance bearing assemblies.
High-Temperature Bearings: Ideal for use in bearings exposed to temperatures up to 500°C.
Vacuum Bearings: Suitable for vacuum environments due to chemical stability and non-magnetic nature.
Chemical Pumps: Resistant to corrosive fluids, perfect for pumps handling acidic or alkaline substances.
Ceramic Valve Balls: Used in valves requiring high wear and corrosion resistance.

Packaging Information

Our Zirconium Oxide Bearing Balls are packaged according to size and quantity requirements:

Small items are securely packed in polypropylene (PP) boxes.
Larger items are shipped in custom wooden crates.
We strictly follow packaging customization and utilize appropriate cushioning materials to ensure safe transportation.

Packaging options include cartons, wooden boxes, or fully customized solutions tailored to your needs.

FAQs

Q1: What are Zirconium Oxide Bearing Balls?
They are high-performance ceramic balls made from zirconium oxide, prized for toughness, wear resistance, and chemical stability, widely used in demanding bearing applications.

Q2: What advantages do ZrO₂ bearing balls offer?

Exceptional toughness and flexural strength
Excellent wear and corrosion resistance
Operate reliably up to 500°C
Non-magnetic and electrically insulating
Approximately 20% lighter than steel
Self-lubricating, eliminating the need for extra lubricants

Q3: In which environments are ZrO₂ balls best suited?
They perform excellently in acidic and alkaline environments, high-temperature conditions (up to 500°C), vacuum settings, and applications requiring electrical insulation.

Performance Comparison: Zirconium Oxide vs. Alumina Bearing Balls

Property	Zirconium Oxide (ZrO₂)	Alumina (Al₂O₃)
Toughness	High	Moderate
Hardness	High	Very High
Wear Resistance	Excellent	Excellent
Density (g/cm³)	6.05	3.9
Corrosion Resistance	Excellent	Good
Max Operating Temp	~500°C	~1600°C
Electrical Property	Non-conductive	Non-conductive
Cost	Moderate	Lower
Typical Uses	High toughness, chemical pumps, ceramic bearings	General ceramic bearings, chemical industry

Looking For a Ceramic Material Supplier?

For tailored solutions or further inquiries about Zirconium Oxide Bearing Balls, please contact Advanced Ceramic Materials (ACM). We are dedicated to supporting your advanced material needs with expertise and quality assurance.

Different Ceramic Bearing Ball Grades and How to Choose

Ceramic Bearing Balls: Precision and Strength Standards

Ceramic bearing balls play a pivotal role in modern industrial applications, offering unmatched precision and strength compared to traditional metal bearings. Understanding the precision grades and compressive strength requirements is essential for selecting the appropriate ceramic material for specific applications.
