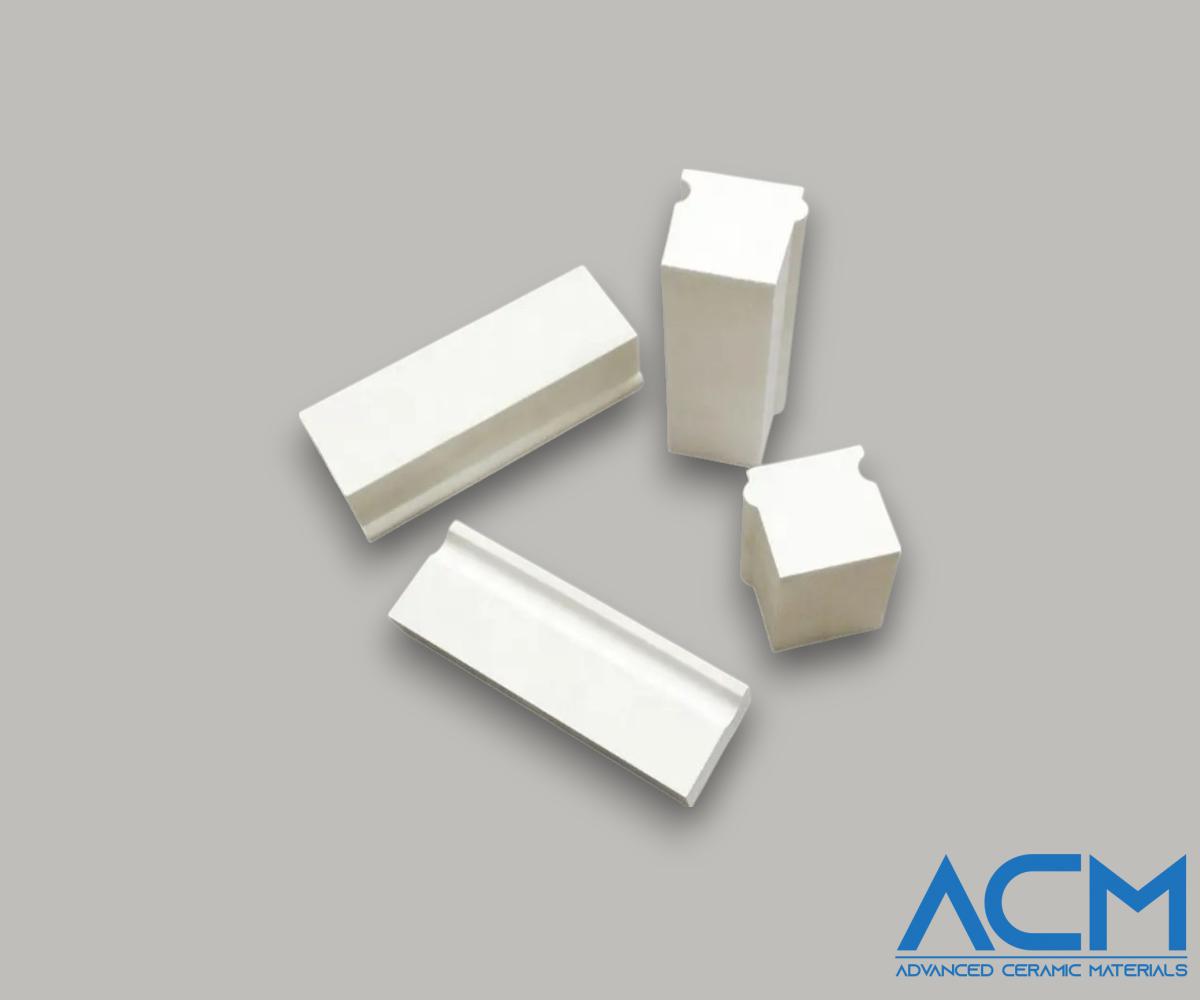

BN1810 Boron Nitride Composite BN-BO Ceramic

  • Catalog No. BN1810
  • Material BN-BO
  • Purity >98%
  • Density 2.1-2.2 g/cm3
  • Shape Customized

Composite BN-BO Ceramic Description

Boron Nitride is a kind of advanced synthesis ceramic that was sintered at a high temperature and high pressure by BN powder. It has many excellent properties including high-temperature resistance, high thermal conductivity, easy machining, and good lubricity, making BN an outstanding material.

BN-BO uses a B2O3 binder to increase the mechanical strength of hot-pressed hBN. It has a higher density without the loss of ceramic powder. This makes it the best choice for high-temperature insulators in the electronics industry.

Due to the hygroscopic adhesive system, BN-BO must be used to avoid exposure to moisture.

High-density, high-purity powder, is a practical choice for high-temperature insulators.
It is the best choice for special nozzles and nozzles.
Excellent processing performance can be processed according to any drawing.

Composite BN-BO Ceramic Specifications

Grade BN-Bo
Compositions BN>98%
Binder B2O3
Density 2.1-2.2 g/cm3
25°C Volume Resistivity >10^13 Ω·cm
Max. Service Temp. (°C) 900 (Oxygen)
2000 (Inert Gas)
1800 (High Vacuum)
Flexural Strength 75 Mpa
Compressive Strength 100 Mpa
Coefficient of Thermal Expansion (25-1000°C) 2.0 10^-6/K
Thermal Conductivity 30 W/mK


Composite BN-BO Ceramic Applications

As a blowing nozzle

Used in ion implanters.

Suitable for the electronics industry, constantly looking for new applications.


Our Boron Nitride BN-BO Ceramic is always carefully handled to prevent damage during storage and transportation and to preserve the quality of our product in its original condition.

Related Documents
Boron Nitride Ceramic Materials Brochure
Technical brochure for Boron Nitride Ceramic Materials, all grades. Revision March 2023.
