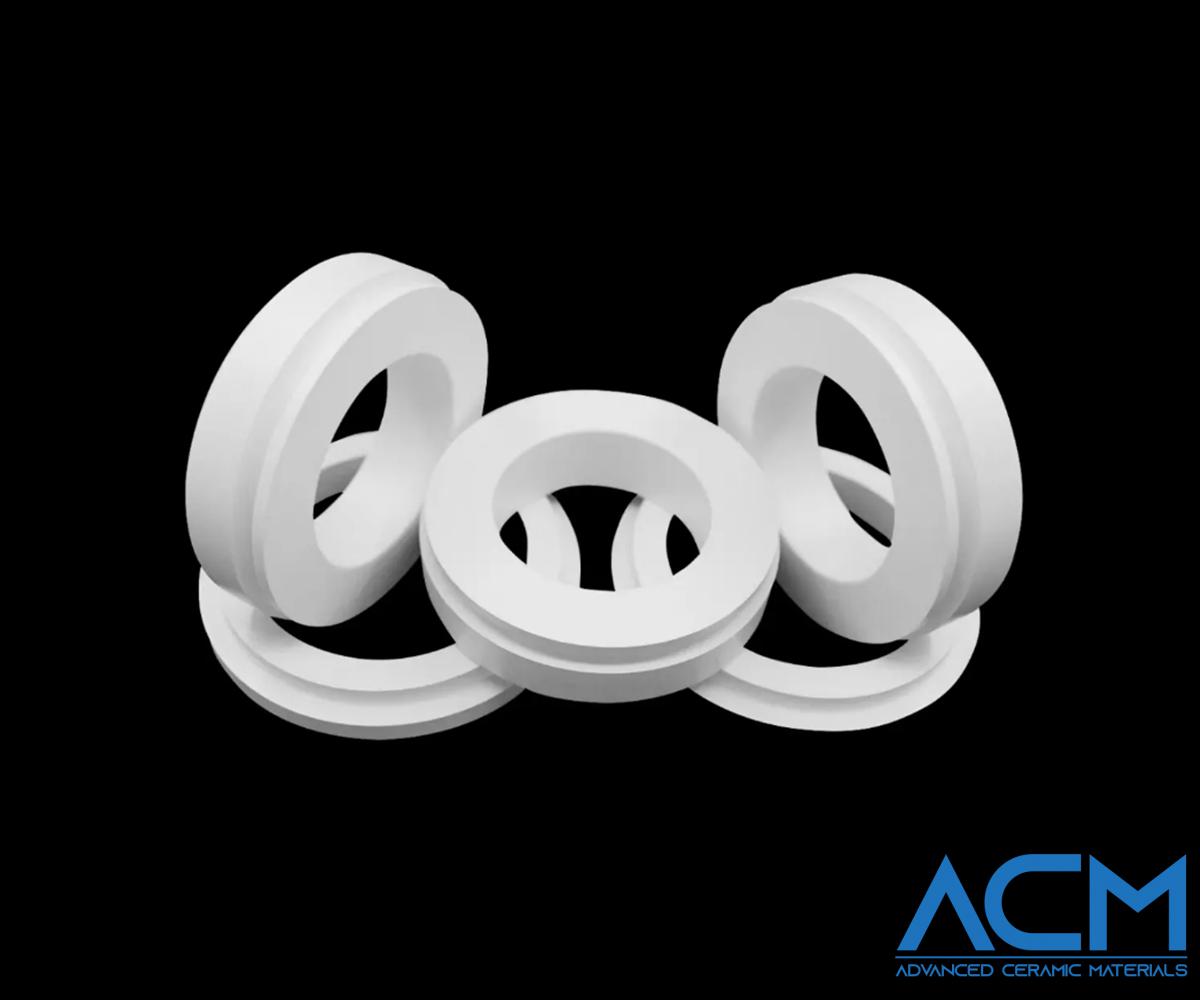

Boron Nitride Gasket is made of boron nitride (BN) — a chemical compound with equal numbers of boron and nitrogen atoms. The hexagonal form (HBN) corresponding to graphite is the softest and most stable form among BN polymorphs, and is therefore used as a lubricant and an additive to cosmetic products. The cubic (CBN) variety analogous to diamond has a high hardness which is inferior only to diamond. The rare wurtzite BN (WBN) modification is similar to lonsdaleite, and it may even be harder than CBN.
– Boron Nitride components for PVD, MOCVD, MBE systems.
– Insulators for high-temperature furnace
– Feedthrough for high-voltage equipment
– Spacers for glass melting
– Boron Nitride parts for ion injection equipment
|BN99||Hot pressed at high temperature (1900℃).
Excellent corrosion resistance and thermal conductivity. Limited wear resistance
Self-bonded and high purity(>99%)
|BNBO||General purpose material
Bonded by boric oxide
|BNCB||Calcium borate bonded boron nitride
Enhanced moisture resistance
|BN60||BN 60%, SiO2 40%||Finished Parts|
|BN40||BN 40%, SiO2 60%||Finished Parts|
|ZSBN||BN-45%, Zr2O3 45%||Finished Parts|
Specifications of BN99 and ZSBN for your reference!
ACM’s Boron Nitride Gasket is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition.
