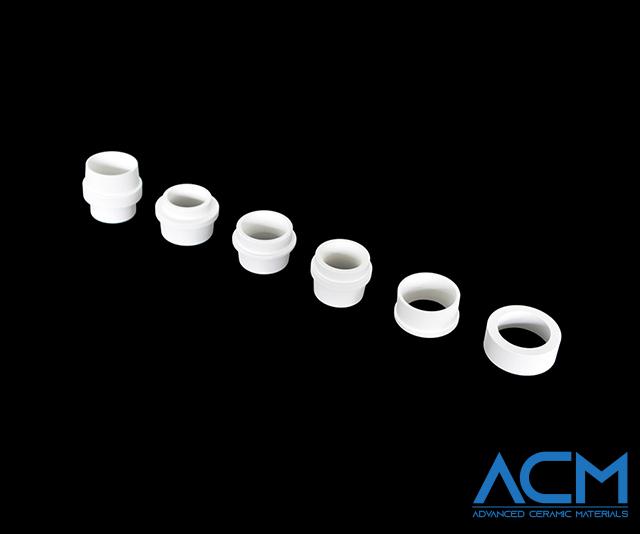

Aluminum Titanate Ceramic Insulating Ring Overview

Aluminum titanate ceramic insulating rings are precision-engineered components made from aluminum titanate (Al₂TiO₅), designed for high-temperature applications involving molten non-ferrous metals. These insulating rings provide excellent thermal shock resistance, very low thermal conductivity, and strong resistance to wetting by molten aluminum. They help prevent metal adhesion and thermal fatigue, making them ideal for aluminum casting systems where thermal insulation, component protection, and reliable operation in harsh industrial environments are required.

Specification

Properties

*The above product information is based on theoretical data. For specific requirements and detailed inquiries, please contact us.

Applications

• Casting and foundry: Provide thermal insulation, anti-wetting interfaces, and protection in aluminum casting systems.

• Furnace systems: Used as sealing and support rings in dosing and holding furnaces to reduce heat loss and thermal stress.

• Low-pressure die casting (LPDC) equipment: Serve as insulating components around riser tubes and casting areas.

• Sensor protection: Shield thermocouples and level probes from molten metal and high temperatures.

Packaging

Products are packaged in customized cartons or wooden crates depending on size. Small items are securely packed in polypropylene (PP) boxes, while larger items are placed in custom wooden crates. Appropriate cushioning materials ensure protection during transportation.

Manufacturing and Testing

Testing includes:

• Chemical composition analysis to verify purity.

• Mechanical property testing including tensile strength, yield strength, and elongation.

• Dimensional inspection to ensure thickness, width, and length meet specifications.

• Surface quality inspection to detect defects such as scratches, cracks, or inclusions using visual and ultrasonic methods.

• Hardness testing to confirm uniformity and mechanical reliability.

Frequently Asked Questions

Q1: What is an aluminum titanate ceramic insulating ring?
A1: A high-performance ceramic component made from aluminum titanate, designed for thermal insulation and resistance to molten aluminum wetting in metal handling applications.

Q2: What are the main advantages of this material?
A2: Outstanding thermal shock resistance, very low thermal conductivity, and excellent resistance to wetting by molten metals, especially aluminum.

Q3: Where are these insulating rings typically used?
A3: In aluminum casting systems, furnace equipment, low-pressure die casting machines, and as protective barriers for sensors and other high-temperature components.

Q4: Can the size or shape be customized?
A4: Yes, custom shapes, sizes, and configurations are available to meet specific customer requirements.

Performance Comparison

Customization Options

• Shapes and dimensions: Complex 3D shapes and a wide range of sizes available.

• Tolerance: From fine to coarse; precision machining available on request.

• Surface and structural features: Available with or without coatings (e.g., boron nitride), grooves, or drillings.

• Special requirements: Custom geometries for specific casting systems, compatibility with high-precision or automated processes, and options for enhanced thermal or corrosion resistance.

Aluminum titanate ceramic insulating rings combine superior thermal insulation, durability, and resistance to molten metal wetting, making them ideal for demanding industrial applications.
